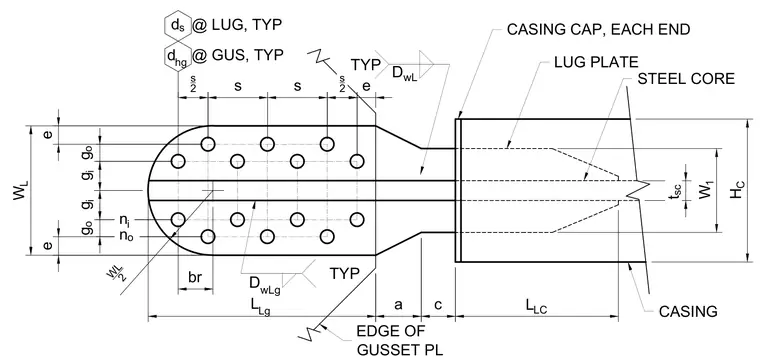

A steel core plate with thickness t_sc extends into a structural casing and connects to a casing cap at each end. A lug plate of width W_1 and height H_C frames into the assembly, welded with weld size D_wL. A gusset plate of length L_Lg and width W_L connects to the lug plate via a transition dimension a and clearance c. Fastener holes of diameter d_hg at the gusset plate and d_s at the lug plate are arranged in a staggered pattern with longitudinal spacing s, edge distance e, and transverse gauges g_i and g_o. Fillet welds of size D_wLg secure the gusset plate assembly at typical locations.
g o e STEEL CORE W 1 t sc W L a c L LC L Lg s 2 s s s 2 g i g o g i e e n o n i WL 2 br D wLg TYP H C CASING LUG PLATE D wL TYP EDGE OF GUSSET PL CASING CAP, EACH END d hg @ GUS, TYP d s @ LUG, TYP
