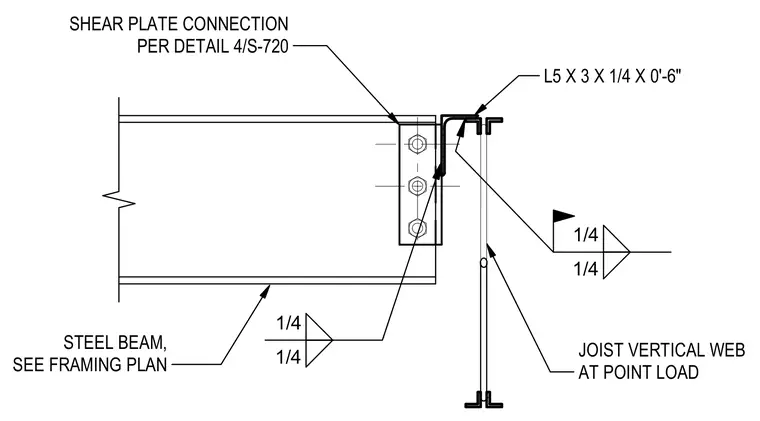

A steel beam connects to a roof joist vertical web at a point load using a shear plate connection per detail 4/S-720. An angle measuring L5x3x1/4 by zero feet six inches ties the members together. Fillet welds of one-quarter inch size secure the connection elements in place as specified on the framing plan.
STEEL BEAM, SEE FRAMING PLAN JOIST VERTICAL WEB AT POINT LOAD 1/4 1/4 SHEAR PLATE CONNECTION PER DETAIL 4/S-720 1/4 1/4 L5 X 3 X 1/4 X 0'-6"
