Metal deck terminates and transitions across structural supports with specific bearing and welding requirements. For deck offsets, a sixteen-gauge continuous weld plate ties into the parallel member, and ribs are cut out with split deck where concrete fill occurs alongside shear studs. For deck direction changes, a sixteen-gauge by two-inch closure plate secures with a five-eighths-inch puddle weld at each low corrugation. Minimum bearing clearances are maintained at two inches for floors and one and one-half inches for roofs. Deck welding follows the structural plan notes.

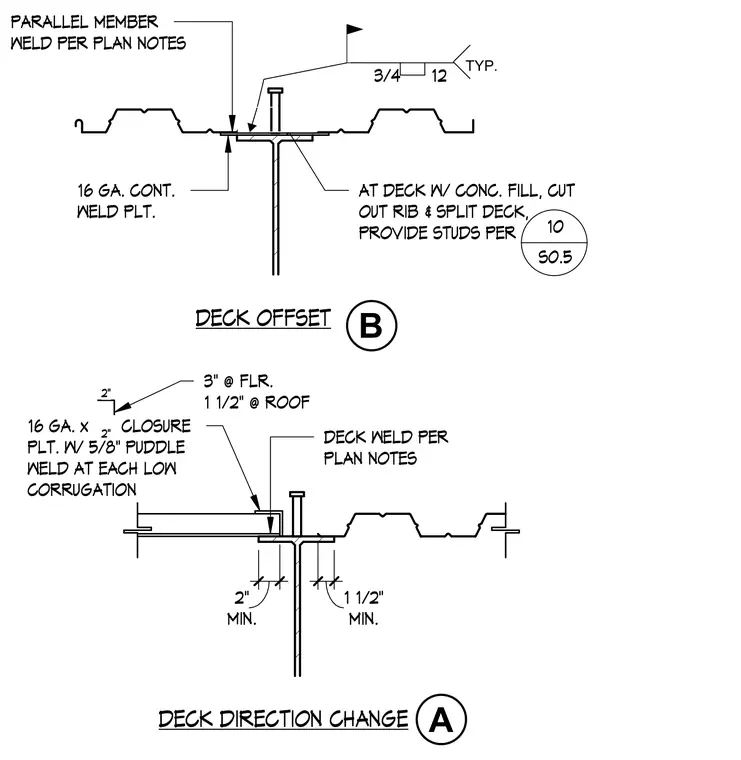

DECK OFFSET 3/4 12 AT DECK W/ CONC. FILL, CUT OUT RIB & SPLIT DECK, PROVIDE STUDS PER B 16 GA. CONT. WELD PLT. PARALLEL MEMBER WELD PER PLAN NOTES 10 S0.5 DECK DIRECTION CHANGE A 16 GA. x CLOSURE PLT. W/ 5/8" PUDDLE WELD AT EACH LOW CORRUGATION DECK WELD PER PLAN NOTES MIN. 2" MIN. 1 1/2" 2" 2" 3" @ FLR. 1 1/2" @ ROOF TYP.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
