A steel beam frames into a hollow structural section steel column using a five-eighths by eleven-inch plate centered on the beam with four seven-eighths-inch A325N galvanized bolts at standard beam gauge. Three-eighths-inch stiffener plates are welded to each side of the hollow structural section column, flush with the beam flange. Fillet welds of five-sixteenths inch are applied typically around the stiffener plates, and a one-half-inch weld connects the column base. A secondary steel beam connects via a beam-to-beam connection per detail one on sheet S52-00.

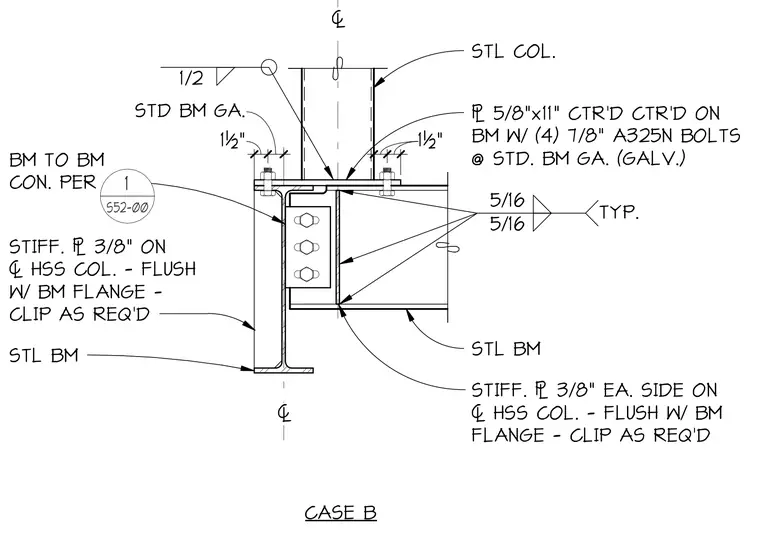

CASE B 1½" STD BM GA. 1½" 1½" STL COL. # 5/8"x11" CTR'D CTR'D ON BM W/ (4) 7/8" A325N BOLTS @ STD. BM GA. (GALV.) STIFF. # 3/8" EA. SIDE ON HSS COL. - FLUSH W/ BM FLANGE - CLIP AS REQ'D STL BM 1/2 5/16 5/16 TYP. BM TO BM CON. PER 1 S52-00 STIFF. # 3/8" ON HSS COL. - FLUSH W/ BM FLANGE - CLIP AS REQ'D STL BM
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
