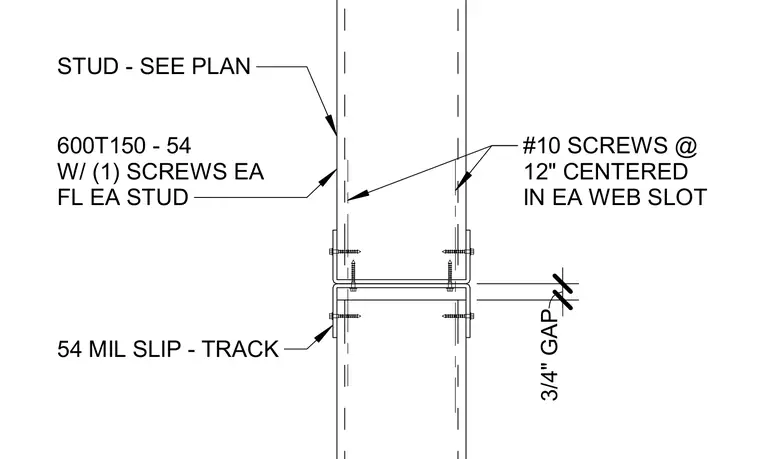

Cold-formed steel studs connect to a fifty-four mil slip track with one screw at each flange of each stud. Number ten screws are spaced at twelve inches on center and centered in each web slot. A three-quarter-inch gap is maintained at the slip track joint.
3/4" GAP #10 SCREWS @ 12" CENTERED IN EA WEB SLOT STUD - SEE PLAN 600T150 - 54 W/ (1) SCREWS EA FL EA STUD 54 MIL SLIP - TRACK
