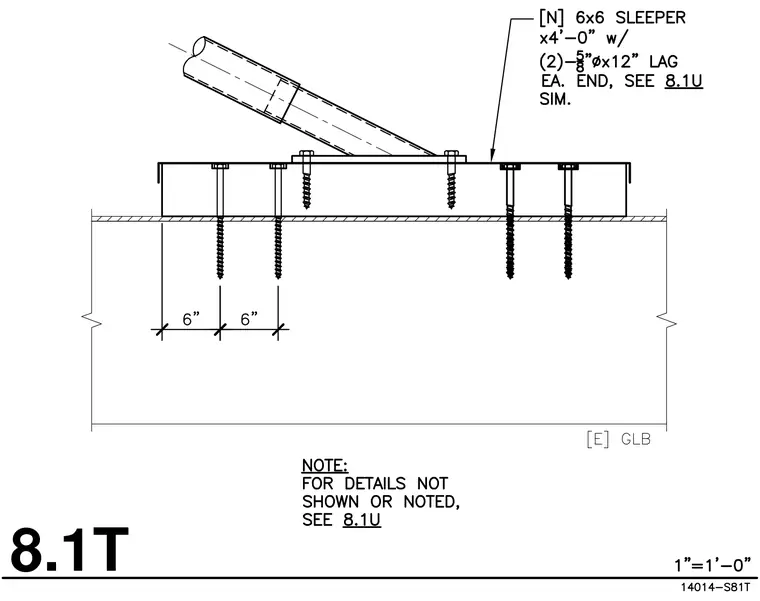

An inclined pipe brace is welded to a base plate secured to a new 6x6 wood sleeper that is 4 feet 0 inches long. The wood sleeper is fastened with two five-eighths-inch diameter by 12-inch lag screws at each end. Additional lag screws spaced at 6-inch intervals anchor the assembly through the sleeper into the existing glued-laminated beam below. Similar details are referenced at detail 8.1U.
