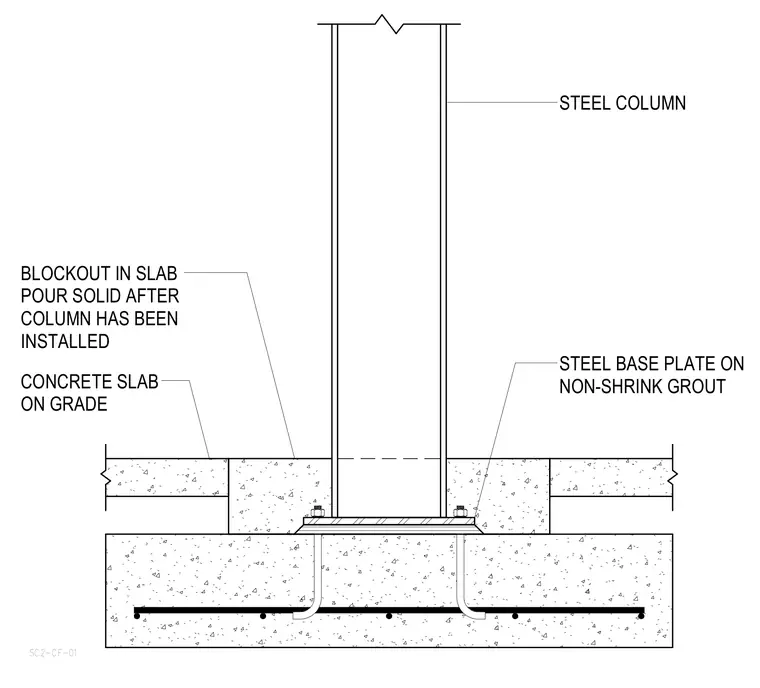

A steel column extends upward from a steel base plate resting on a layer of non-shrink grout above a concrete foundation. The base plate is anchored by hooked anchor bolts embedded into the concrete foundation. A concrete slab-on-grade surrounds the base with a blockout that is poured solid after the column has been installed.
SC2-CF-01 STEEL COLUMN BLOCKOUT IN SLAB POUR SOLID AFTER COLUMN HAS BEEN INSTALLED CONCRETE SLAB ON GRADE STEEL BASE PLATE ON NON-SHRINK GROUT
