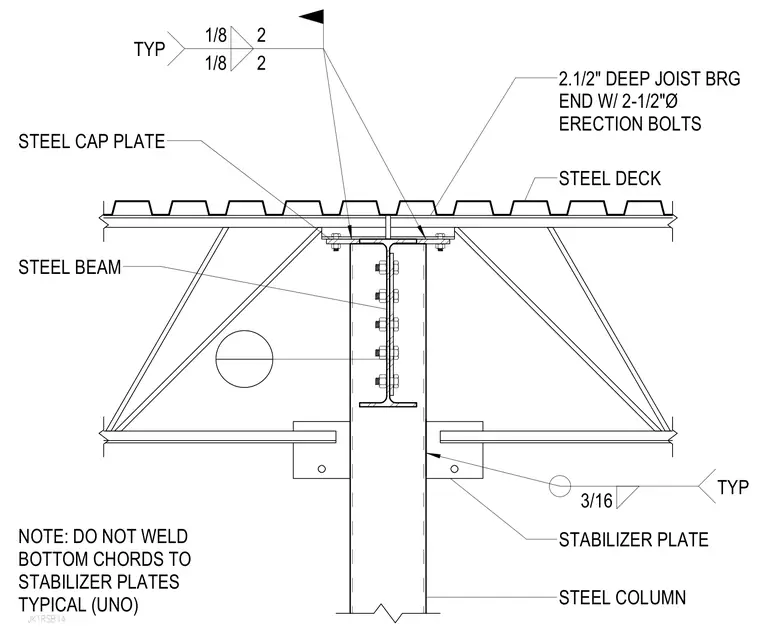

A structural steel column terminates at a steel cap plate that supports a continuous steel beam above with a bolted web connection. Open web steel joists bear on the assembly with two 1/2-inch diameter erection bolts at each end. A steel deck spans across the top chords of the joists and beam, secured with fillet welds typically indicated as 1/8-inch by 2-inch welds. Stabilizer plates are welded to the column with 3/16-inch fillet welds, while bottom chords of the joists are left unwelded to the stabilizer plates unless noted otherwise.
JK1RSB14 STEEL CAP PLATE STEEL COLUMN STEEL DECK NOTE: DO NOT WELD BOTTOM CHORDS TO STABILIZER PLATES TYPICAL (UNO) 1/8 2 1/8 2 TYP STEEL BEAM 2.1/2" DEEP JOIST BRG END W/ 2-1/2"Ø ERECTION BOLTS STABILIZER PLATE 3/16 TYP
