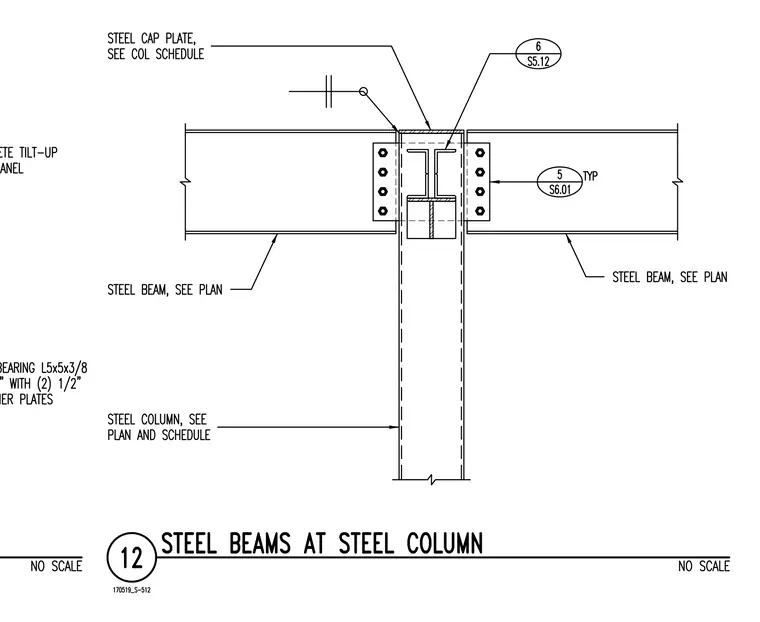

Steel beams sized per plan frame into a vertical steel column sized per plan and schedule. A steel cap plate is welded to the top of the column. The beams connect to the column flanges using bolted shear tabs. Internal stiffener plates align with the beam flanges.
