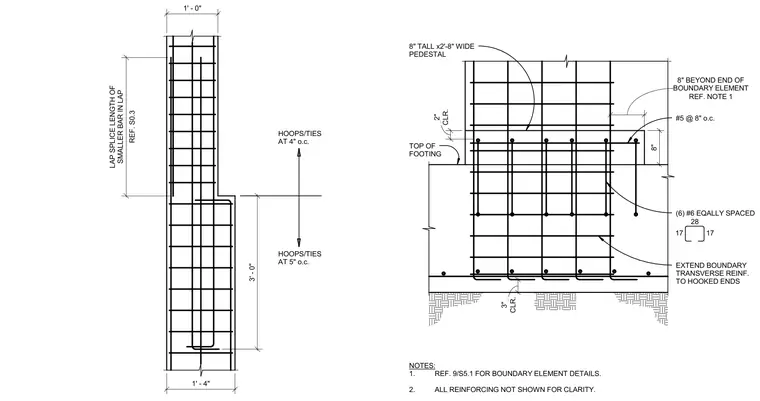

Boundary element anchorage at a mat footing features an eight-inch tall by two-foot eight-inch wide concrete pedestal set upon the footing. The assembly incorporates six number six bars equally spaced across the pedestal, with number five bars at eight inches on center extending eight inches beyond the end of the boundary element. Transverse reinforcement extends to hooked ends with three-inch clearance at the footing base and two-inch clearance at the pedestal top. Hoops and ties are spaced at four inches on center within the lower transition zone and five inches on center below. A lap splice length for the smaller bar is specified per drawing S0.3 over a one-foot width.
CLR. 2" 8" REF. NOTE 1 8" BEYOND END OF BOUNDARY ELEMENT CLR. 3" #5 @ 8" o.c. EXTEND BOUNDARY TRANSVERSE REINF. TO HOOKED ENDS 8" TALL x2'-8" WIDE PEDESTAL TOP OF FOOTING (6) #6 EQALLY SPACED 28 17 17 NOTES: 1. REF. 9/S5.1 FOR BOUNDARY ELEMENT DETAILS. 2. ALL REINFORCING NOT SHOWN FOR CLARITY. 3' - 0" REF. S0.3 LAP SPLICE LENGTH OF SMALLER BAR IN LAP 1' - 0" HOOPS/TIES AT 4" o.c. HOOPS/TIES AT 5" o.c. 1' - 4"
