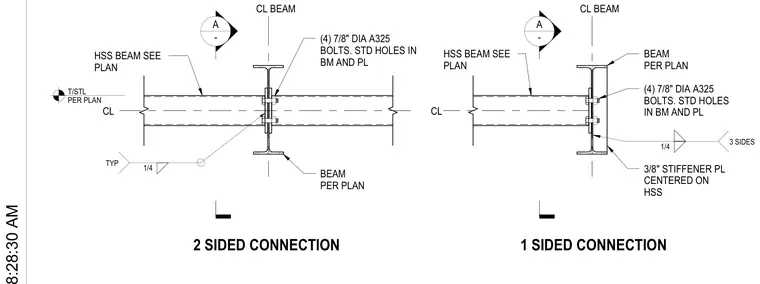

An HSS beam connects to a supporting main beam using standard holes in the beam web and a connecting plate fastened with four 7/8-inch diameter A325 bolts. A 3/8-inch stiffener plate is centered on the HSS and welded on three sides with a quarter-inch fillet weld for the one-sided connection. Two-sided connections use standard quarter-inch fillet welds typically applied along the connection plate.
A - A - CL BEAM PER PLAN HSS BEAM SEE PLAN CL BEAM (4) 7/8" DIA A325 BOLTS. STD HOLES IN BM AND PL 3/8" STIFFENER PL CENTERED ON HSS 1/4 3 SIDES CL BEAM PER PLAN HSS BEAM SEE PLAN CL BEAM (4) 7/8" DIA A325 BOLTS. STD HOLES IN BM AND PL 1/4 TYP T/STL PER PLAN 2 SIDED CONNECTION 1 SIDED CONNECTION
