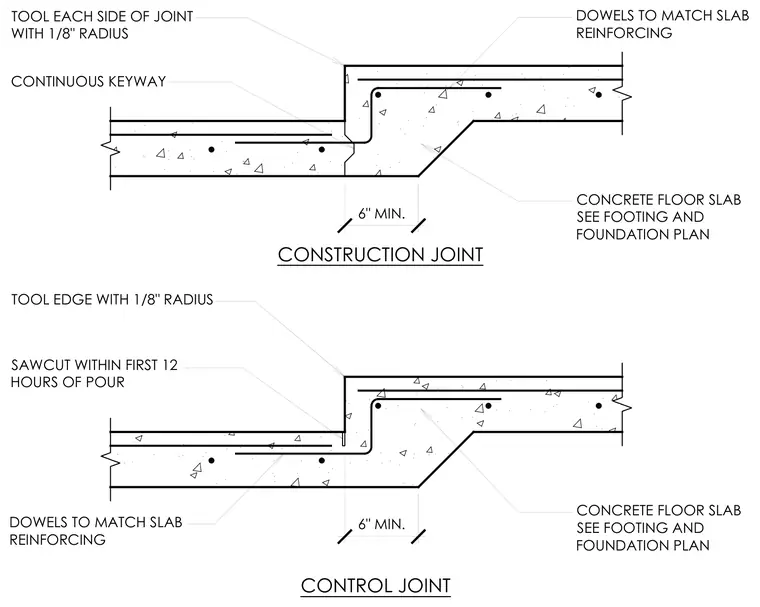

Concrete floor slab transitions feature a depression with a minimum six-inch dimension and continuous slab reinforcing dowels. The construction joint incorporates a continuous keyway with the slab edge tooled on each side to a one-eighth-inch radius. The control joint incorporates a sawcut executed within the first twelve hours of the pour with the top edge tooled to a one-eighth-inch radius.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
