Buckling-Restrained Brace Connection at Steel Column and Beam

Materials

Glass / Glazing

Elements

Roofs Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

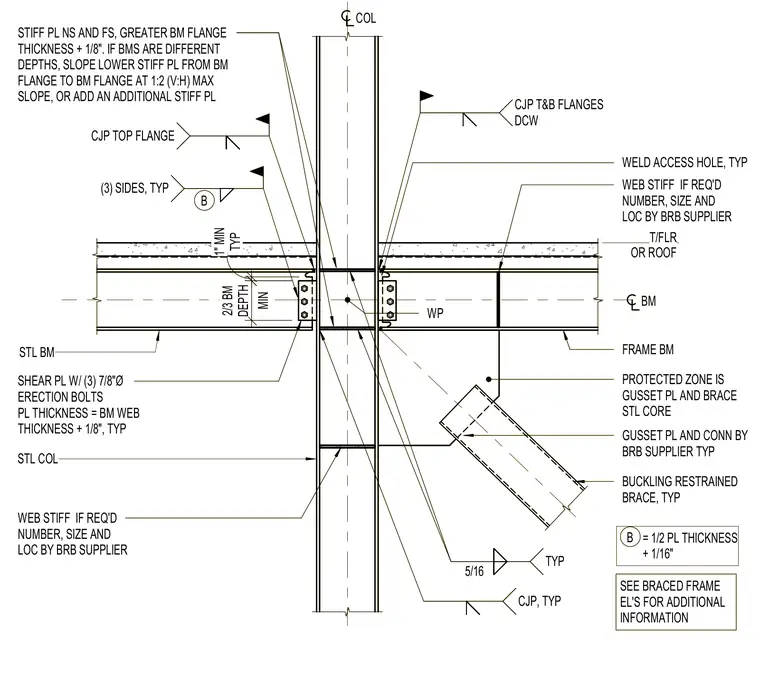

A buckling-restrained brace connection frames into a steel column and steel beam junction. The connection incorporates a gusset plate and connection details provided by the buckling-restrained brace supplier, with stiffener plates on the near side and far side sized to the greater beam flange thickness plus one-eighth inch. Where beams are of different depths, the lower stiffener plate slopes from beam flange to beam flange at a maximum one-to-two vertical-to-horizontal slope or includes an additional stiffener plate. The frame beams feature a typical shear plate with three seven-eighth-inch diameter erection bolts, where plate thickness equals the beam web thickness plus one-eighth inch. Complete joint penetration welds connect the top and bottom flanges, alongside five-sixteenth-inch typical welds and weld access holes. Additional web stiffeners are provided as required, with number, size, and location specified by the brace supplier.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
