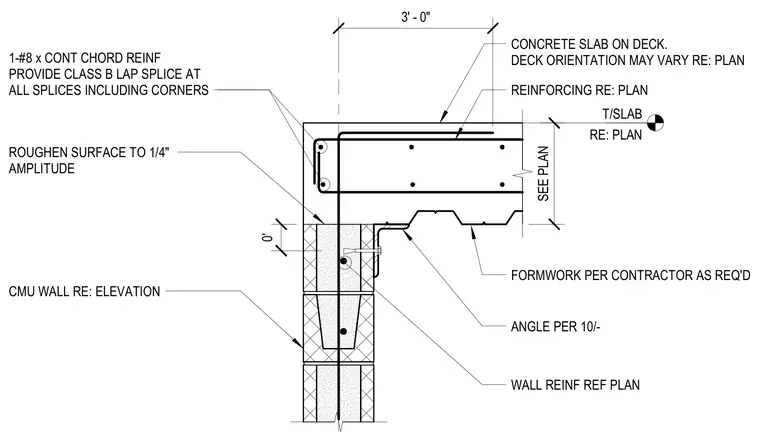

A concrete slab on metal deck bears on a reinforced concrete masonry unit wall with a supporting structural steel angle specified per plan. The slab incorporates continuous number eight chord reinforcement with a Class B lap splice required at all splices and corners, along with supplementary reinforcing sized per plan. The top of the masonry wall is roughened to a one-quarter inch amplitude surface profile. Formwork is provided by the contractor as required, and deck orientation varies per plan.
CMU WALL RE: ELEVATION WALL REINF REF PLAN CONCRETE SLAB ON DECK. DECK ORIENTATION MAY VARY RE: PLAN REINFORCING RE: PLAN T/SLAB RE: PLAN 1-#8 x CONT CHORD REINF PROVIDE CLASS B LAP SPLICE AT ALL SPLICES INCLUDING CORNERS SEE PLAN 0' ROUGHEN SURFACE TO 1/4" AMPLITUDE ANGLE PER 10/- 3' - 0" FORMWORK PER CONTRACTOR AS REQ'D
