Structural · S-FFJHW

Steel Joist and Beam Bearing at Exterior Wall

Materials

Steel Cold-formed Steel Timber / Wood Masonry / CMU Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Roofs Decks Arches Bracing

Connections

HSS Connection Bracing Connection

About this detail

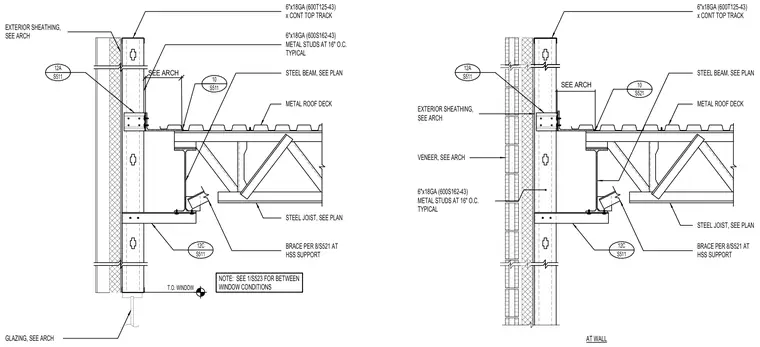

Roof framing details show a steel joist and steel beam bearing at an exterior wall framed with 6-inch 18-gauge metal studs spaced at 16 inches on center with continuous top tracks. A metal roof deck bears over the steel beam and joist assembly, with hollow structural section support bracing detailed per architectural drawings. The exterior wall includes exterior sheathing, glazing, or veneer assemblies coordinated with architectural specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
