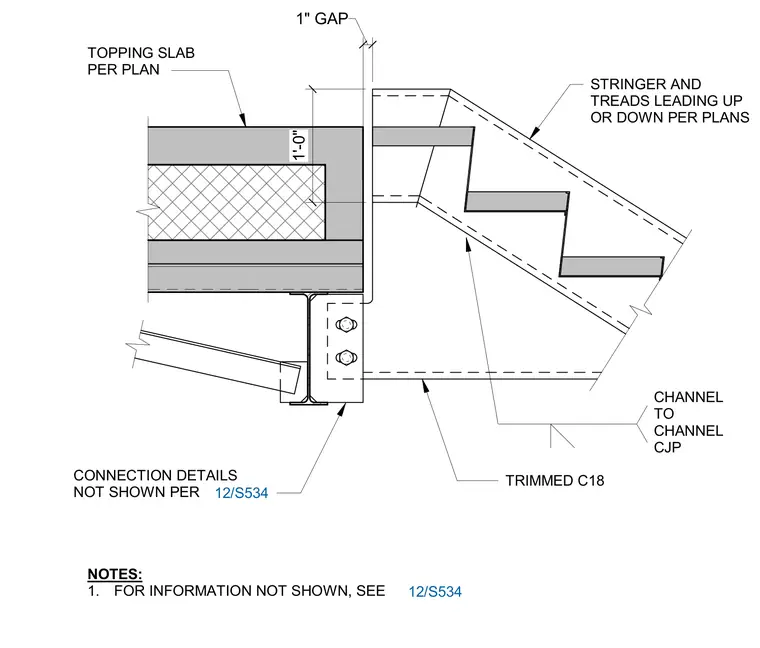

The steel stair stringer consists of trimmed C18 channel members with treads leading up or down per plans, featuring complete joint penetration welds at channel-to-channel junctions. The assembly connects adjacent to a floor or roof slab with a topping slab over metal deck. A one-inch gap separates the stair stringer from the slab edge. Additional connection details are referenced per sheet 12/S534.
TRIMMED C18 TOPPING SLAB PER PLAN NOTES: 1. FOR INFORMATION NOT SHOWN, SEE . CHANNEL TO CHANNEL CJP STRINGER AND TREADS LEADING UP OR DOWN PER PLANS 12/S534 1" GAP 1'-0" CONNECTION DETAILS NOT SHOWN PER 12/S534
