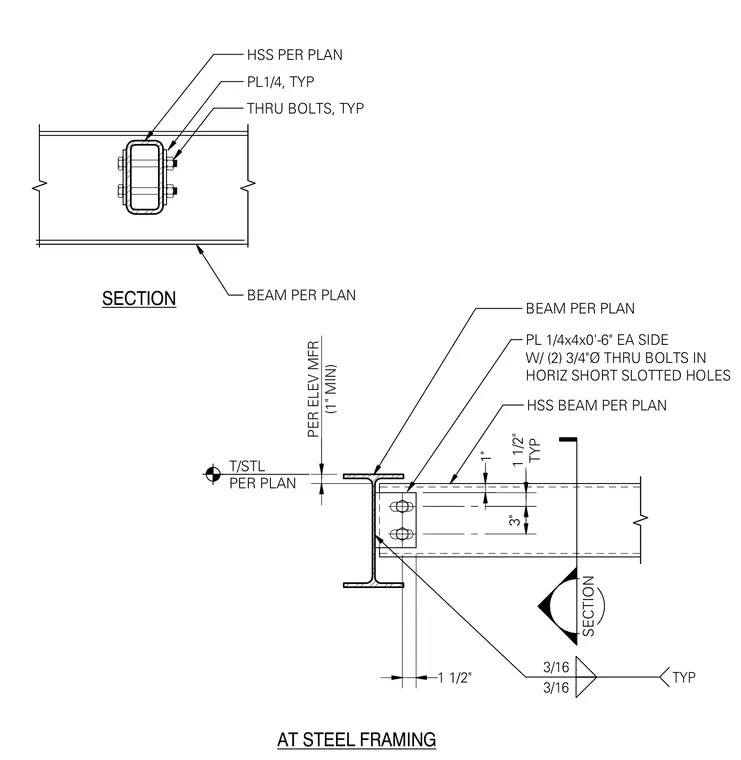

A cold-formed steel hollow structural section beam frames into a structural steel beam per plan using a 1/4-inch by 4-inch by 0'-6" plate on each side. Two 3/4-inch diameter thru bolts are installed in horizontal short slotted holes to accommodate movement. Fillet welds of 3/16-inch size connect the assembly at the steel framing. A minimum 1-inch clearance is maintained per elevation manufacturer requirements.
BEAM PER PLAN SECTION 3" 1 1/2" TYP 1 1/2" 1" BEAM PER PLAN T/STL PER PLAN AT STEEL FRAMING (1" MIN) PER ELEV MFR 3/16 3/16 TYP PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN HSS BEAM PER PLAN SECTION PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES
