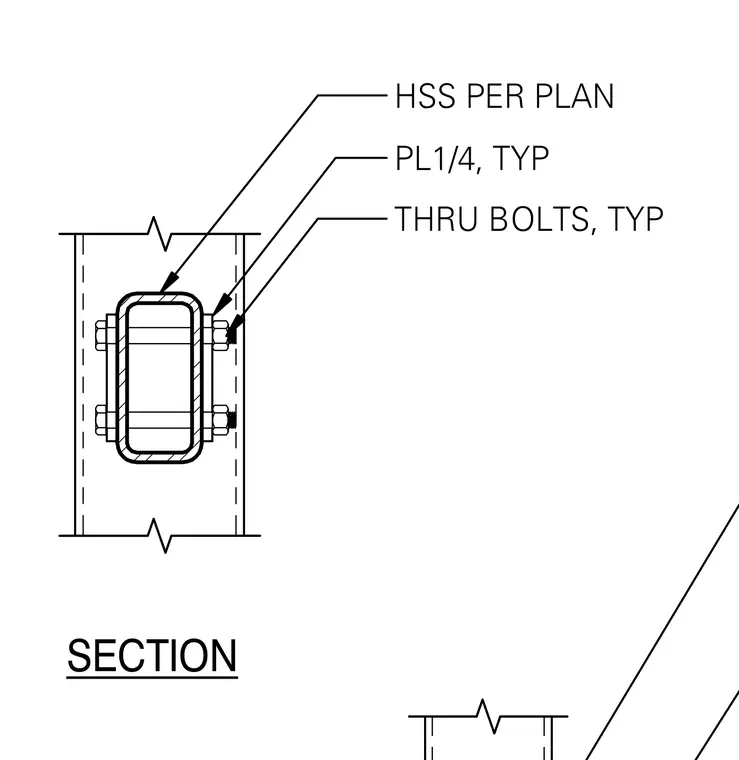

A hollow structural section member per plan connects using typical quarter-inch steel plates secured with typical through-bolts. The assembly sandwiches the structural member between two steel plates fastened with opposing through-bolts and nuts.
