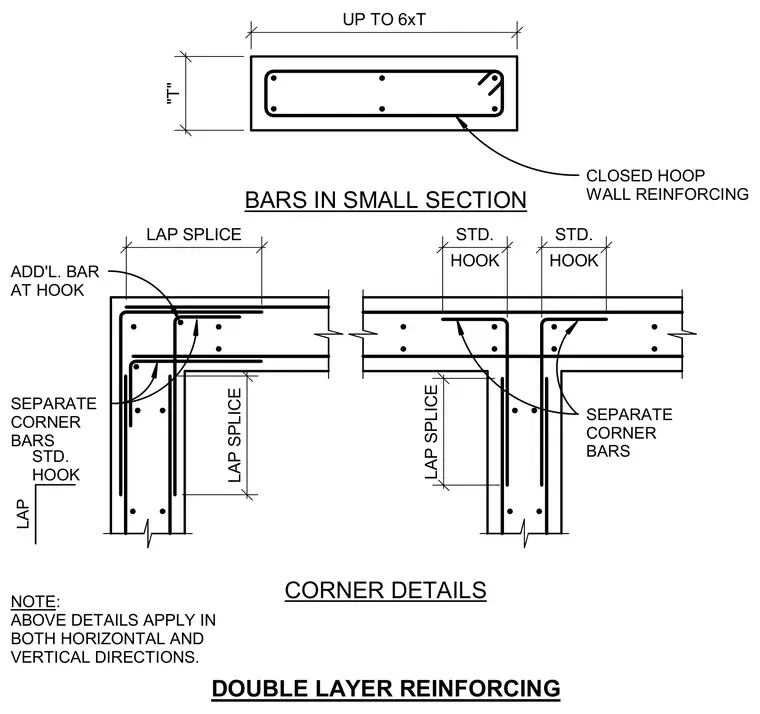

Concrete wall reinforcing details show closed hoops in small sections up to six times thickness, alongside corner and intersecting wall details featuring separate corner bars, lap splices, standard hooks, and additional bars at hooks. These details apply in both horizontal and vertical directions for double layer reinforcing configurations.
CLOSED HOOP WALL REINFORCING CORNER DETAILS BARS IN SMALL SECTION UP TO 6xT LAP SPLICE HOOK STD. HOOK STD. SEPARATE CORNER BARS NOTE: ABOVE DETAILS APPLY IN BOTH HORIZONTAL AND VERTICAL DIRECTIONS. SEPARATE CORNER BARS DOUBLE LAYER REINFORCING "T" LAP SPLICE LAP STD. HOOK LAP SPLICE ADD'L. BAR AT HOOK
