A structural steel perimeter roof beam bears on a steel column via a one-half inch cap plate secured with four three-quarter inch diameter bolts. Three-eighths inch stiffener plates are welded to each side of the beam over the column centerline using quarter-inch fillet welds. An open-web steel joist frames into the beam using two one-half inch diameter bolts. An L3x3 minimum angle is provided at the perimeter edge per plan. A bottom chord extension with a three kips force capacity is detailed per plan.

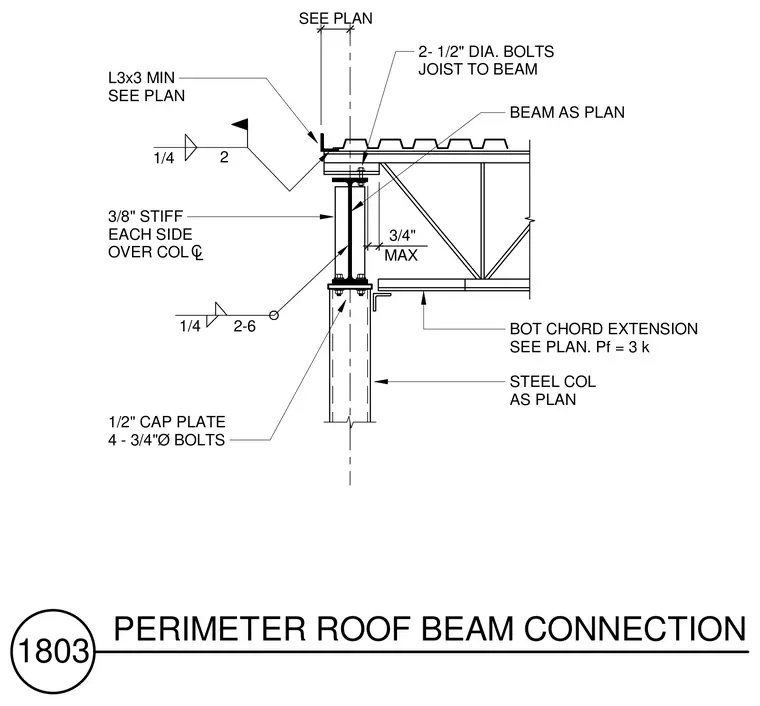

1/4 1/4 1/2" CAP PLATE 4 - 3/4"Ø BOLTS 2 3/8" STIFF EACH SIDE OVER COL L3x3 MIN SEE PLAN CL 2-6 BOT CHORD EXTENSION SEE PLAN. Pf = 3 k STEEL COL AS PLAN MAX BEAM AS PLAN SEE PLAN 3/4" 2- 1/2" DIA. BOLTS JOIST TO BEAM 1803 PERIMETER ROOF BEAM CONNECTION
