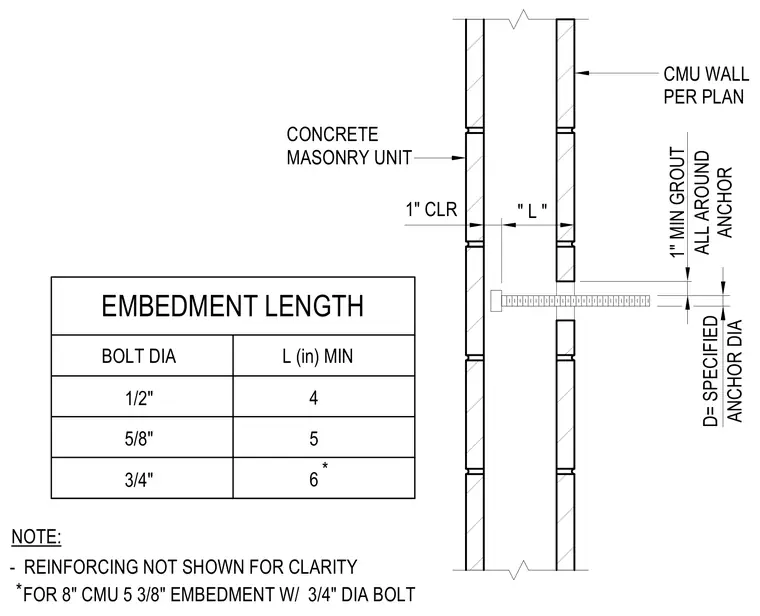

Anchor bolts are embedded into a concrete masonry unit wall with a specified minimum clearance and grout cover around the anchor diameter. The embedment length varies based on the bolt diameter, requiring four inches for a half-inch diameter, five inches for a five-eighths-inch diameter, and six inches for a three-quarter-inch diameter bolt. An eight-inch concrete masonry unit wall requires a five-and-three-eighths-inch embedment when utilizing a three-quarter-inch diameter bolt. Wall reinforcing is omitted from the section for clarity.
" L " 1" CLR D= SPECIFIED ANCHOR DIA ALL AROUND ANCHOR 1" MIN GROUT NOTE: FOR 8" CMU 5 3/8" EMBEDMENT W/ 3/4" DIA BOLT - REINFORCING NOT SHOWN FOR CLARITY CONCRETE MASONRY UNIT CMU WALL PER PLAN * EMBEDMENT LENGTH BOLT DIA L (in) MIN 1/2" 5/8" 3/4" 4 5 6 *
