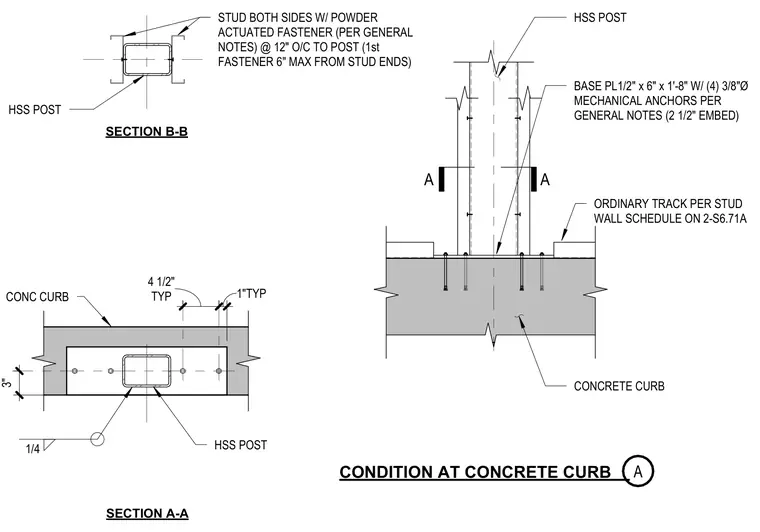

A hollow structural section post is anchored to a concrete curb using a half-inch by six-inch by one-foot eight-inch base plate secured with four three-eighths-inch diameter mechanical anchors with two and one-half inches of embedment. Framing studs are attached to both sides of the HSS post at twelve inches on center using powder-actuated fasteners, maintaining a maximum six-inch distance from the stud ends. An ordinary track is installed per the stud wall schedule.
STUD BOTH SIDES W/ POWDER ACTUATED FASTENER (PER GENERAL NOTES) @ 12" O/C TO POST (1st FASTENER 6" MAX FROM STUD ENDS) HSS POST SECTION B-B CONDITION AT CONCRETE CURB A A HSS POST BASE PL1/2" x 6" x 1'-8" W/ (4) 3/8"Ø MECHANICAL ANCHORS PER GENERAL NOTES (2 1/2" EMBED) ORDINARY TRACK PER STUD WALL SCHEDULE ON 2-S6.71A CONCRETE CURB CONC CURB SECTION A-A TYP 4 1/2" 1"TYP 1/4 A 3" HSS POST
