Typical Concrete Wall Footing and Steel Column Footing

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings Expansion / Control Joints Reinforcing

About this detail

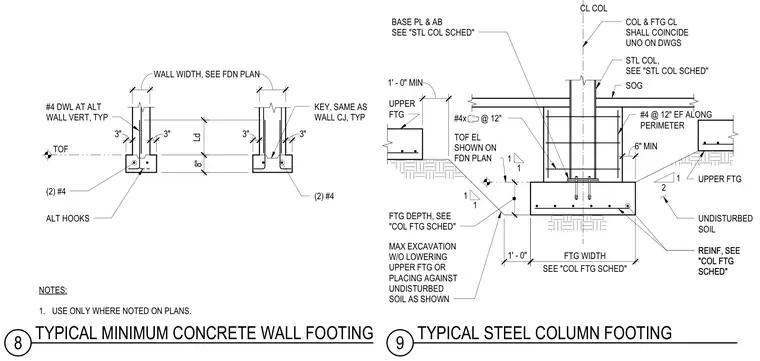

Two foundation conditions comprise a minimum concrete wall footing and a steel column footing bearing on undisturbed soil. The wall footing incorporates two number four reinforcing bars at the bottom with alternative hooks, and number four dowels at alternating vertical wall locations tied with perimeter reinforcement at twelve inches on center. The steel column footing features a base plate and anchor bolts detailed per the structural column schedule, with reinforcing bars sized per the column footing schedule and a slab-on-grade bearing above. Maximum excavation limits are indicated with slopes relative to the top of footing elevation shown on the foundation plan. A construction key is provided matching the wall control joint.
