Structural · S-FF4CX

Lateral Brace Connection at Wide Flange Beam and Metal Deck

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Roofs Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection Shear Stud / Composite

About this detail

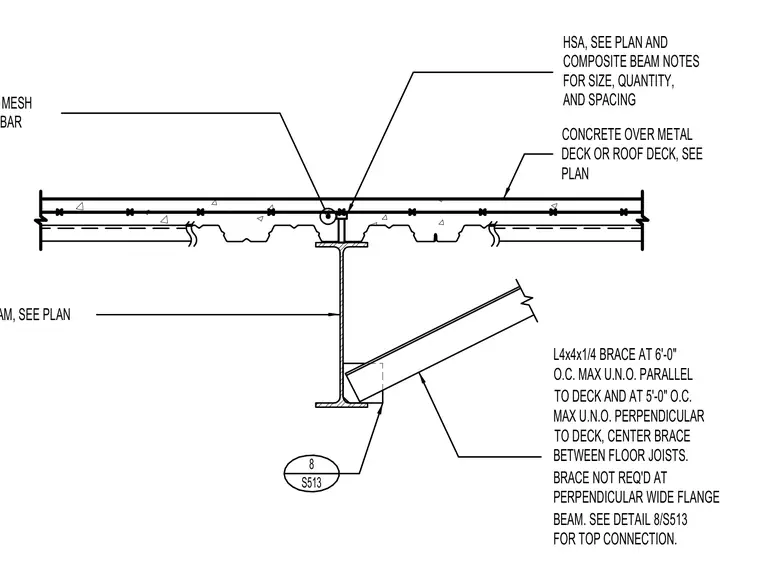

An angle brace formed from an L4x4x1/4 structural member connects to the web of a steel wide flange beam, positioned at a maximum spacing of six feet on center parallel to the deck and five feet on center perpendicular to the deck unless noted otherwise. The wide flange beam supports a concrete topping slab over a metal deck or roof deck, which incorporates continuous mesh support bars and headed shear anchors sized per the structural plans. A detail reference bubble points to the bottom flange connection of the brace. The brace is omitted at perpendicular wide flange beams, requiring reference to detail 8/S513 for the top connection.
