Structural · S-FF2D9

Steel Joist and Steel Beam at Steel Girder

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Roofs Floors / Slabs Decks Bracing Connections / Plates

Connections

Bracing Connection

About this detail

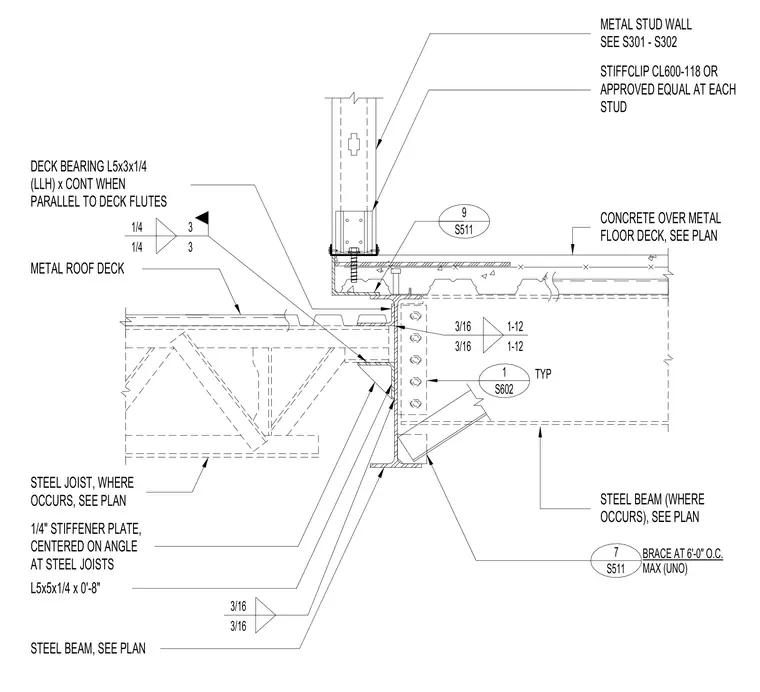

A steel joist and steel beam bear onto a supporting steel girder with welded angle connections and stiffener plates. A continuous deck bearing angle of size L5x3x1/4 is provided when parallel to deck flutes beneath the metal roof deck. A one-quarter inch thick stiffener plate centered on the angle occurs at steel joists, welded with three-sixteenths inch fillet welds. A short steel beam segment of size L5x5x1/4 by zero feet eight inches connects to the girder web using three-sixteenths inch fillet welds. A metal stud wall sits above the concrete over metal floor deck, anchored with Stiffclip CL600-118 or approved equal at each stud. A structural brace connects to the underside of the steel beam at six feet zero inches on center maximum unless noted otherwise.
