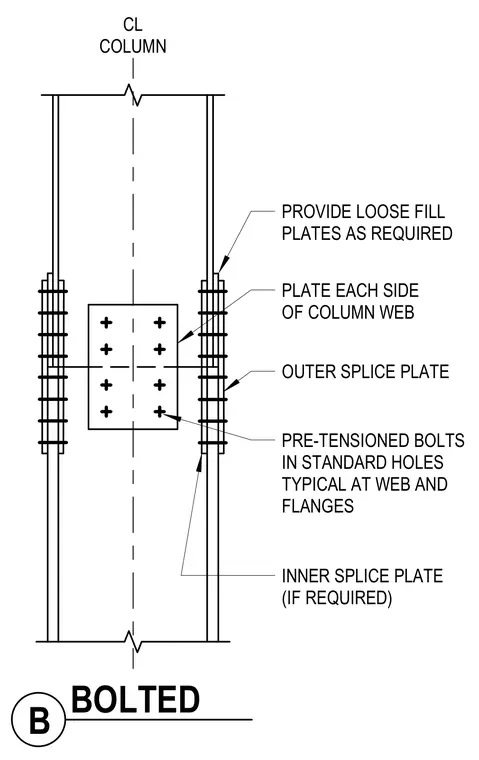

A bolted steel column splice connection uses outer and inner splice plates installed at the column web and flanges. Pre-tensioned bolts are placed in standard holes across the connection assembly. Loose fill plates are provided as required to accommodate fit-up tolerances and gaps. Additional plates are positioned on each side of the column web for load transfer.
PRE-TENSIONED BOLTS IN STANDARD HOLES TYPICAL AT WEB AND FLANGES PLATE EACH SIDE OF COLUMN WEB INNER SPLICE PLATE (IF REQUIRED) PROVIDE LOOSE FILL PLATES AS REQUIRED OUTER SPLICE PLATE CL COLUMN B BOLTED
