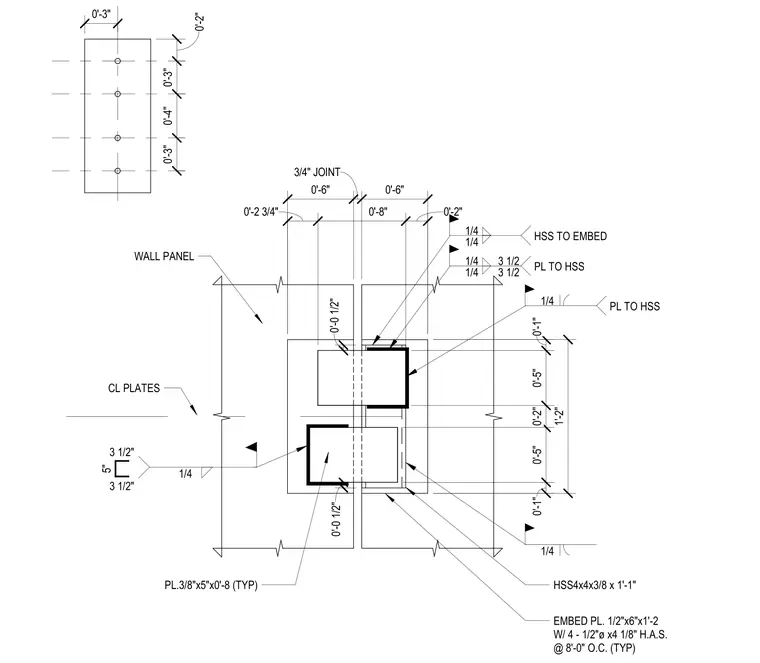

This assembly features a structural connection between hollow structural section members and embed plates within a wall panel system. The connection utilizes a three-eighths inch by five inch by eight inch plate, typical, welded to the hollow structural section with a one-quarter inch fillet weld. The embed plate measures one-half inch by six inches by one foot two inches and is anchored with four one-half inch diameter by four and one-eighth inch headed anchor studs spaced at eight feet on center. The hollow structural section members, sized at four inches by four inches by three-eighths inch by one foot one inch, are joined to the embed plates using one-quarter inch fillet welds. A three-quarter inch joint separates the wall panels, with specific centerline plate dimensions and stud layouts provided for precise field installation.
Text on the drawing
CL PLATES 0'-2 3/4" 0'-8" 0'-2" 0'-6" 3/4" JOINT 0'-6" WALL PANEL 0'-1" 0'-5" 0'-2" 1'-2" 0'-3" 0'-3" 0'-4" 0'-3" 0'-2" EMBED STUD LAYOUT 0'-0 1/2" 1/4 1/4 HSS TO EMBED 1/4 3 1/2 1/4 3 1/2 PL TO HSS 1/4 PL TO HSS
