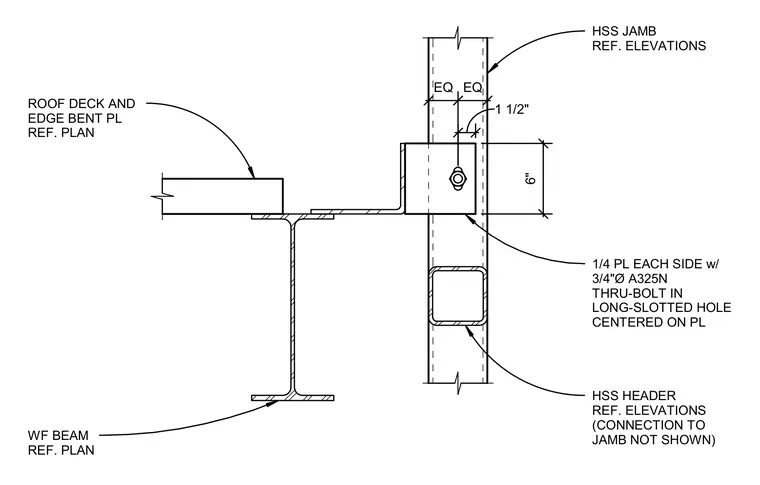

A structural roof framing connection features a wide-flange beam and edge bent plate framing into an HSS jamb. The connection utilizes quarter-inch plates on each side secured with three-quarter-inch diameter A325N through-bolts placed in long-slotted holes centered on the plate. An HSS header is positioned nearby with its connection to the jamb unshown.
6" EQ EQ 1 1/2" ROOF DECK AND EDGE BENT PL REF. PLAN WF BEAM REF. PLAN HSS JAMB REF. ELEVATIONS 1/4 PL EACH SIDE w/ 3/4"Ø A325N THRU-BOLT IN LONG-SLOTTED HOLE CENTERED ON PL HSS HEADER REF. ELEVATIONS (CONNECTION TO JAMB NOT SHOWN)
