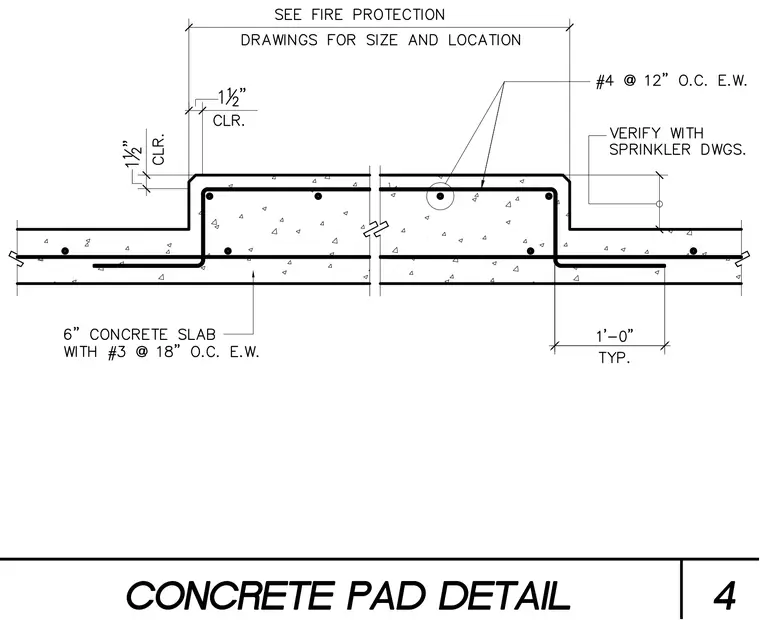

A six-inch concrete slab features a recessed or raised pad section with one-and-a-half-inch clearances at the vertical offsets. The main slab is reinforced with number three rebars at eighteen inches on center each way, while the pad portion is reinforced with number four rebars at twelve inches on center each way with standard one-foot laps typically. Notes direct coordination with fire protection and sprinkler drawings for sizing, exact location, and clearances.
