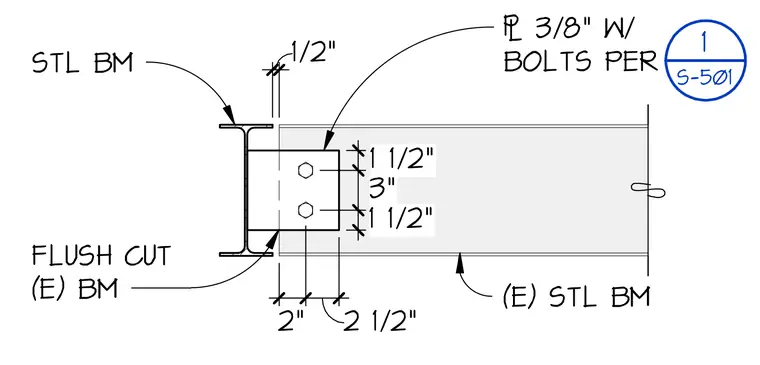

An existing steel beam features a flush cut end connected to another steel beam using a three-eighths inch plate with bolts spaced per plan. The connection includes vertical bolt spacings of one and one-half inches and three inches, with horizontal edge distances of two inches and two and one-half inches.
1 1/2" 3" 1 1/2" 2" 2 1/2" (E) STL BM 3/8" W/ BOLTS PER 1/2" STL BM FLUSH CUT (E) BM 1 S-501
