Structural · S-FE8KG

Batter's Eye Pole Foundation Detail

Materials

Concrete

Elements

Foundations / Footings Expansion / Control Joints Anchors / Embeds

Connections

Embed Plate

About this detail

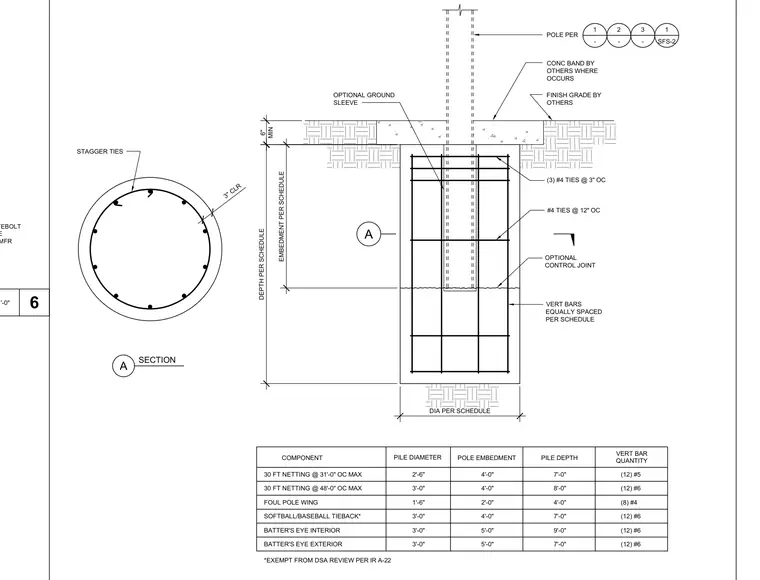

Cast-in-place concrete foundation pier for a sports pole or batter's eye structure, complete with reinforcing steel schedules and embedment parameters. The vertical pole is embedded into the concrete pier featuring three number four ties at three inches on center near the top, with additional number four ties at twelve inches on center along the shaft, and vertically spaced bars per the schedule. The foundation includes an optional ground sleeve, an optional control joint, and is surrounded by a concrete band and finish grade by others. A corresponding reinforcement schedule table lists pile diameters, pole embedment depths, total pile depths, and vertical bar quantities for various components including netting poles, foul pole wings, softball and baseball tiebacks, and interior and exterior batter's eyes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
