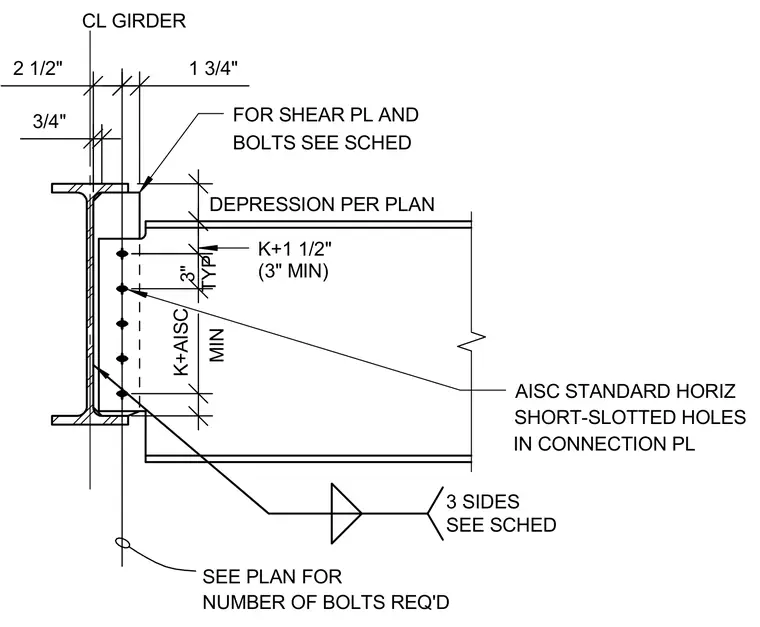

A structural steel beam frames into the web of a supporting girder with a vertical depression determined per plan. The connection utilizes a shear plate welded to the girder web on three sides per schedule and bolted to the supported beam web. AISC standard horizontal short-slotted holes are provided in the connection plate. The number of bolts and shear plate dimensions are sized per schedule based on engineering requirements.
K+AISC 3" TYP 1 3/4" 2 1/2" 3/4" DEPRESSION PER PLAN FOR SHEAR PL AND BOLTS SEE SCHED CL GIRDER K+1 1/2" (3" MIN) SEE PLAN FOR NUMBER OF BOLTS REQ'D 3 SIDES SEE SCHED MIN AISC STANDARD HORIZ SHORT-SLOTTED HOLES IN CONNECTION PL
