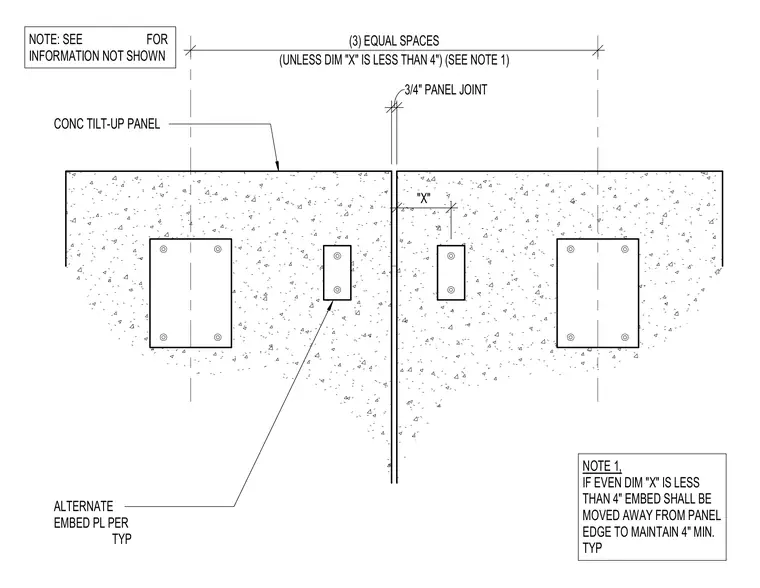

Concrete tilt-up panels feature three equal spaces across the joint with an alternate embed plate configuration per typical notes. A three-quarter-inch panel joint separates the adjacent concrete sections. Dimension X measures the distance from the panel edge to the embed plate. If dimension X is less than four inches, the embed plate must be relocated away from the panel edge to maintain a four-inch minimum distance.
(UNLESS DIM "X" IS LESS THAN 4") (SEE NOTE 1) (3) EQUAL SPACES 3/4" PANEL JOINT "X" CONC TILT-UP PANEL ALTERNATE EMBED PL PER TYP NOTE 1, IF EVEN DIM "X" IS LESS THAN 4" EMBED SHALL BE MOVED AWAY FROM PANEL EDGE TO MAINTAIN 4" MIN. TYP NOTE: SEE FOR INFORMATION NOT SHOWN
