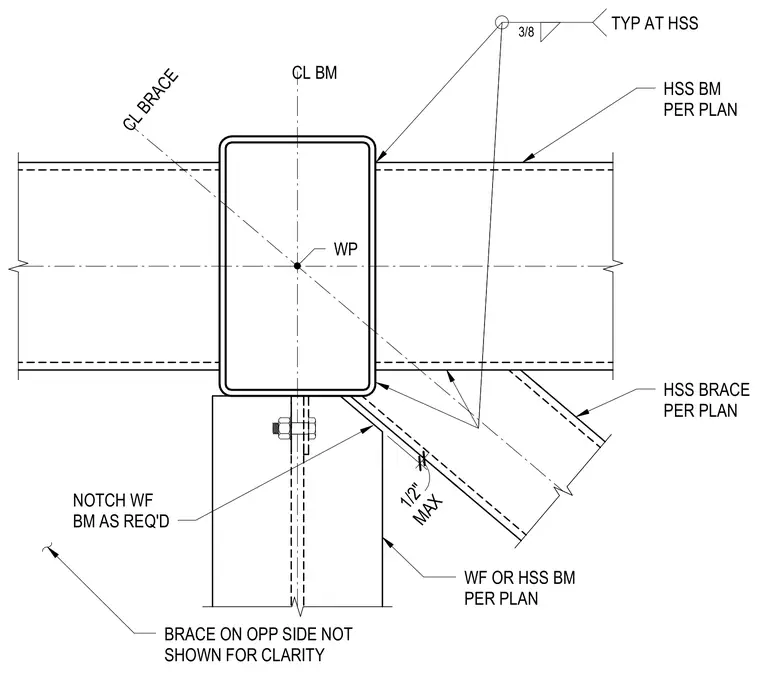

A hollow structural section brace connects to a wide flange or hollow structural section beam per plan with a maximum half-inch clearance. The wide-flange beam is notched as required to accommodate the connection geometry. A three-eighths-inch fillet weld joins the hollow structural section members typically at the connection. The centerline of the brace intersects the centerline of the beam at the working point. A brace on the opposite side is omitted from the view for clarity.
CL BRACE CL BM WP HSS BM PER PLAN WF OR HSS BM PER PLAN BRACE ON OPP SIDE NOT SHOWN FOR CLARITY TYP AT HSS 3/8 NOTCH WF BM AS REQ'D MAX 1/2" HSS BRACE PER PLAN
