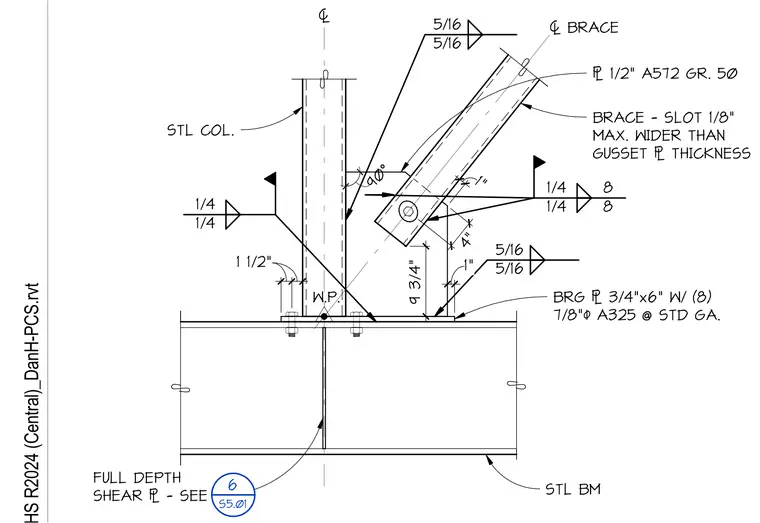

A structural steel brace connects to a gusset plate made from one-half inch A572 Grade 50 plate, which is welded to a steel column and bearing plate. The brace member is slotted one-eighth inch maximum wider than the gusset plate thickness and secured with bolts. A bearing plate measuring three-quarters by six inches is attached with eight seven-eighth inch diameter A325 bolts at standard gauge. The steel column sits above a supporting steel beam featuring a full-depth shear plate as referenced on sheet S5.01. Fillet welds of various sizes connect the assembly components.
STL BM W.P. 1 1/2" 1 1/2" 1/4 1/4 BRG ' 3/4"x6" W/ (8) 7/8". A325 @ STD GA. BRACE - SLOT 1/8" MAX. WIDER THAN GUSSET ' THICKNESS ' 1/2" A572 GR. 50 90° 1" 4" 5/16 5/16 1/4 8 1/4 8 9 3/4" 1" FULL DEPTH SHEAR ' - SEE 6 S5.01 STL COL. * BRACE * 5/16 5/16
