Structural · S-FDWFH

Interior Masonry Wall Foundation and Slab-on-Grade Detail

Materials

Concrete Masonry / CMU

Elements

Beams Walls Floors / Slabs Foundations / Footings Stem Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

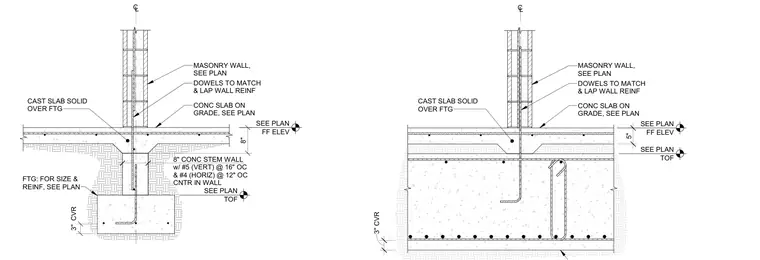

An interior concrete masonry unit wall bears on an eight-inch concrete stem wall and continuous footing, tied together with vertical dowels that match and lap the wall reinforcement. A concrete slab on grade abuts the stem wall, featuring a solid concrete pour over the footing with a three-inch concrete cover. The stem wall is reinforced with number five vertical bars at sixteen inches on center and number four horizontal bars at twelve inches on center centered in the wall. The footing size and reinforcement are determined per plan, maintaining a three-inch concrete cover.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
