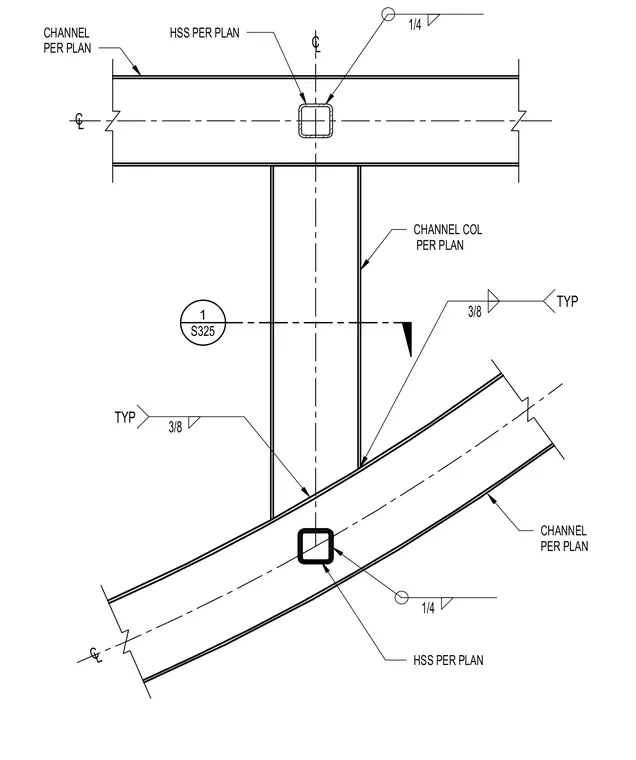

A vertical channel column connects to hollow structural sections sized per plan using welded joints. A horizontal channel at the top and an inclined channel intersect the vertical column and hollow structural sections. Fillet welds connect the members with typical sizes indicated on the drawing.
1/4 CHANNEL PER PLAN CHANNEL PER PLAN HSS PER PLAN C L C L C L CHANNEL COL PER PLAN HSS PER PLAN 1/4 3/8 TYP 3/8 TYP 1 S325
