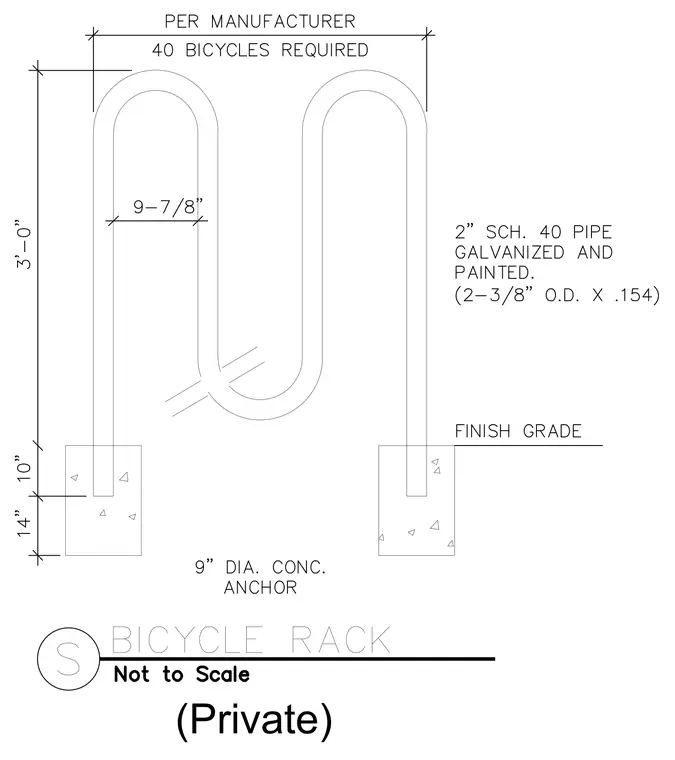

This assembly consists of a two-inch schedule forty pipe measuring two and three-eighths inches outside diameter with a wall thickness of point one fifty-four inches. The bent tubular pipe loops continuously to accommodate forty bicycles per manufacturer requirements. The structure stands three feet high above finish grade with a loop spacing of nine and seven-eighths inches. The vertical legs anchor into nine-inch diameter concrete footings extending fourteen inches deep with ten inches above subgrade. The pipe finish is specified as galvanized and painted.
