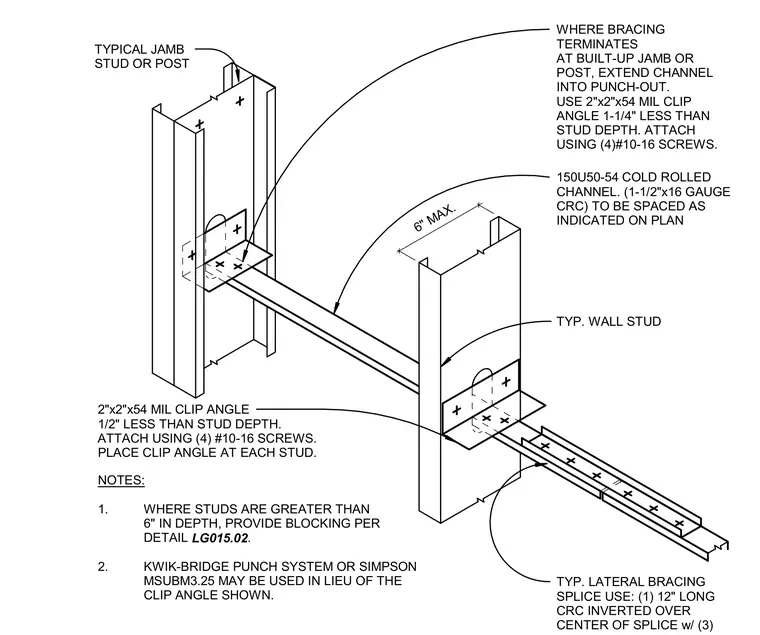

Cold-formed steel lateral bracing utilizes a 1-1/2-inch by 16-gauge cold-rolled channel running continuously through stud punch-outs. A 12-long cold-rolled channel inverts over the center of the splice with three fasteners. At built-up jambs or posts, clip angles measuring 2 by 2 inches by 54 mil attach using four number 10-16 self-drilling screws. Where stud depths exceed 6 inches, blocking is required per detail LG015.02. Alternatively, a Kwik-Bridge punch system or Simpson MSUBM3.25 may be used in lieu of the clip angle.
2"x2"x54 MIL CLIP ANGLE 1/2" LESS THAN STUD DEPTH. ATTACH USING (4) #10-16 SCREWS. PLACE CLIP ANGLE AT EACH STUD. TYP. LATERAL BRACING SPLICE USE: (1) 12" LONG CRC INVERTED OVER CENTER OF SPLICE w/ (3) TYP. WALL STUD 150U50-54 COLD ROLLED CHANNEL. (1-1/2"x16 GAUGE CRC) TO BE SPACED AS INDICATED ON PLAN WHERE BRACING TERMINATES AT BUILT-UP JAMB OR POST, EXTEND CHANNEL INTO PUNCH-OUT. USE 2"x2"x54 MIL CLIP ANGLE 1-1/4" LESS THAN STUD DEPTH. ATTACH USING (4)#10-16 SCREWS. TYPICAL JAMB STUD OR POST 6" MAX. NOTES: 1. WHERE STUDS ARE GREATER THAN 6" IN DEPTH, PROVIDE BLOCKING PER DETAIL LG015.02 . 2. KWIK-BRIDGE PUNCH SYSTEM OR SIMPSON MSUBM3.25 MAY BE USED IN LIEU OF THE CLIP ANGLE SHOWN.
