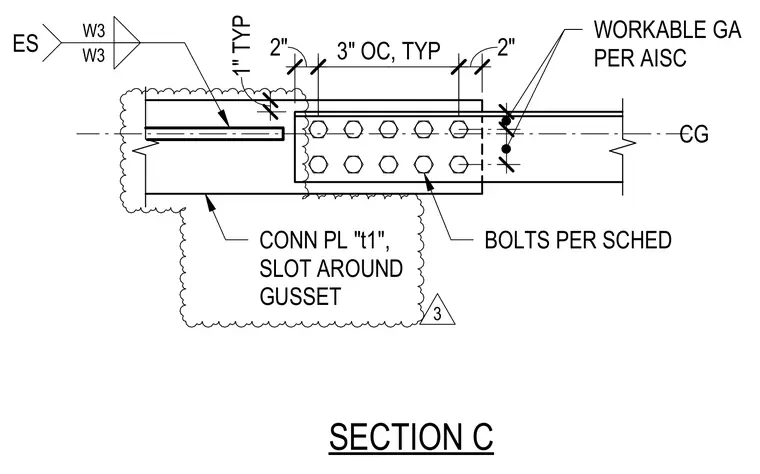

A connection plate with thickness t1 is slotted around the gusset plate and secured with bolts sized per schedule at a typical three-inch on-center spacing with two-inch end distances. A welded spacer configuration utilizes W3 welds with a one-inch typical clearance. The work point maintains a workable gauge per the American Institute of Steel Construction standards aligned along the center of gravity.
BOLTS PER SCHED CONN PL "t1", SLOT AROUND GUSSET SECTION C CG 1 1/2" 3" WORKABLE GA PER AISC 1" TYP ES W3 W3 2" 12" 2" 3" OC, TYP 3
