Concrete Tilt-Up Panel Lintel Reinforcing Schedule and Details

Materials

Concrete Reinforced Concrete

Elements

Columns Beams Walls Arches Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

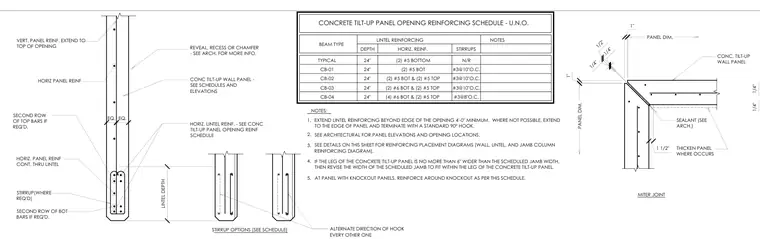

This drawing provides reinforcement details and schedules for concrete tilt-up wall panel lintels, jambs, and corners. The concrete tilt-up wall panel includes horizontal and vertical panel reinforcement continuing through the lintel, with optional second rows of top and bottom reinforcing bars. Stirrups are spaced at ten inches on center or as required by the opening reinforcing schedule, with alternating hook directions. Lintels extend four feet minimum beyond the opening edge, terminating with standard ninety-degree hooks where space permits. Panel corners feature a mitered joint with exterior sealant and thickened panel sections where specified.
