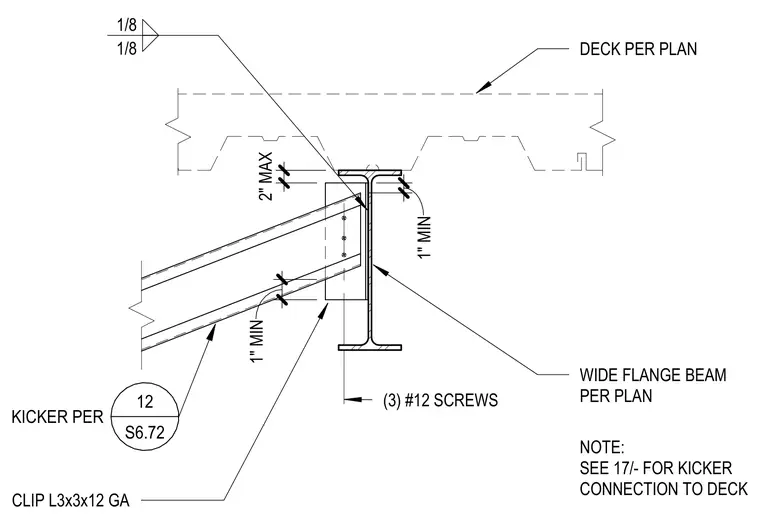

A structural kicker brace connects to the web of a wide flange beam sized per plan using an L3x3 angle clip. The clip secures to the beam web with three number twelve screws. A metal deck bears above with a maximum two-inch clearance. A note directs to sheet seventeen for the kicker connection to the deck.
WIDE FLANGE BEAM PER PLAN CLIP L3x3x12 GA (3) #12 SCREWS DECK PER PLAN 2" MAX NOTE: SEE 17/- FOR KICKER CONNECTION TO DECK 1" MIN 1" MIN 1/8 1/8 12 S6.72 KICKER PER
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
