An eight-inch concrete slab on grade features number five reinforcing bars spaced at twelve inches on center each way. The reinforcing mesh or grid is placed three inches below the top of slab. This typical reinforcement layout provides structural integrity and crack control for ground-supported concrete slabs.

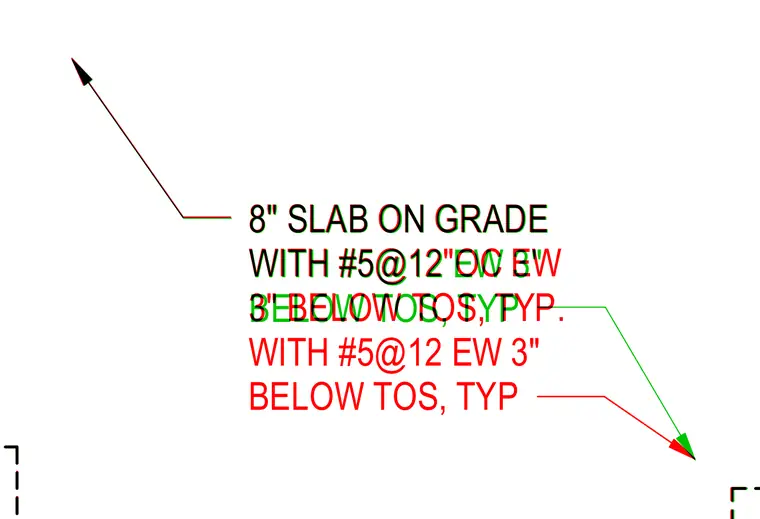

8" SLAB ON GRADE WITH #5@12"OC EW 3" BELOW TOS, TYP. WITH #5@12 EW 3" BELOW TOS, TYP 8" SLAB ON GRADE WITH #5@12 EW 3" BELOW TOS, TYP
