Concrete footings penetrated by galvanized iron sleeves require specific clearances and concrete fill placed prior to pouring foundations. Pipe trenches must maintain a 2:1 slope relative to the bottom of footings to prevent undermining. Concrete fill beneath footings is limited to a maximum height of three feet above the pipe invert and matches the full width of the pipe trench. PVC sleeves are substituted where soil conditions are corrosive.

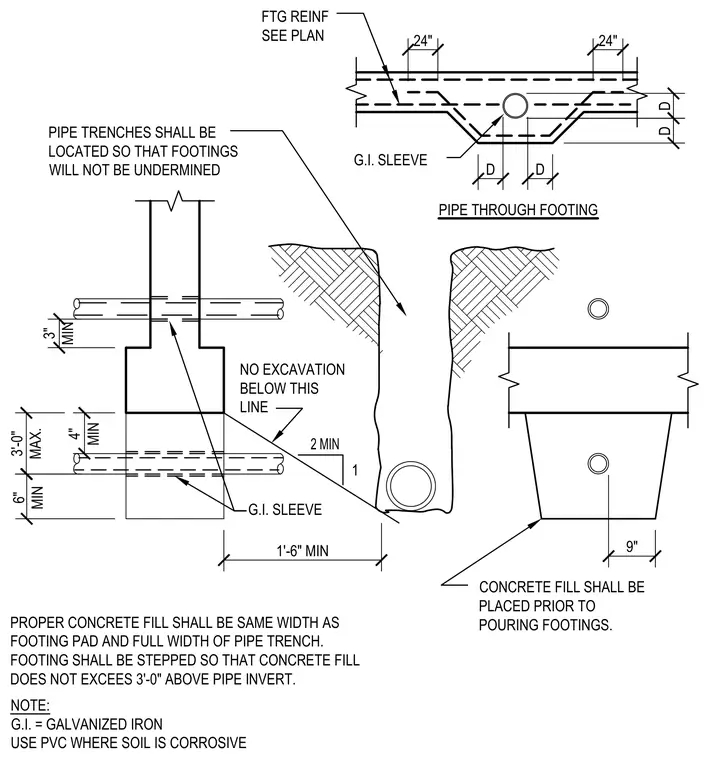

PIPE TRENCHES SHALL BE LOCATED SO THAT FOOTINGS WILL NOT BE UNDERMINED G.I. SLEEVE NO EXCAVATION BELOW THIS LINE 1'-6" MIN 6" MIN NOTE: G.I. = GALVANIZED IRON USE PVC WHERE SOIL IS CORROSIVE 3'-0" MAX. 4" MIN 3" MIN 9" CONCRETE FILL SHALL BE PLACED PRIOR TO POURING FOOTINGS. D D D D 24" 24" FTG REINF SEE PLAN 1 2 MIN G.I. SLEEVE PIPE THROUGH FOOTING PROPER CONCRETE FILL SHALL BE SAME WIDTH AS FOOTING PAD AND FULL WIDTH OF PIPE TRENCH. FOOTING SHALL BE STEPPED SO THAT CONCRETE FILL DOES NOT EXCEES 3'-0" ABOVE PIPE INVERT.
