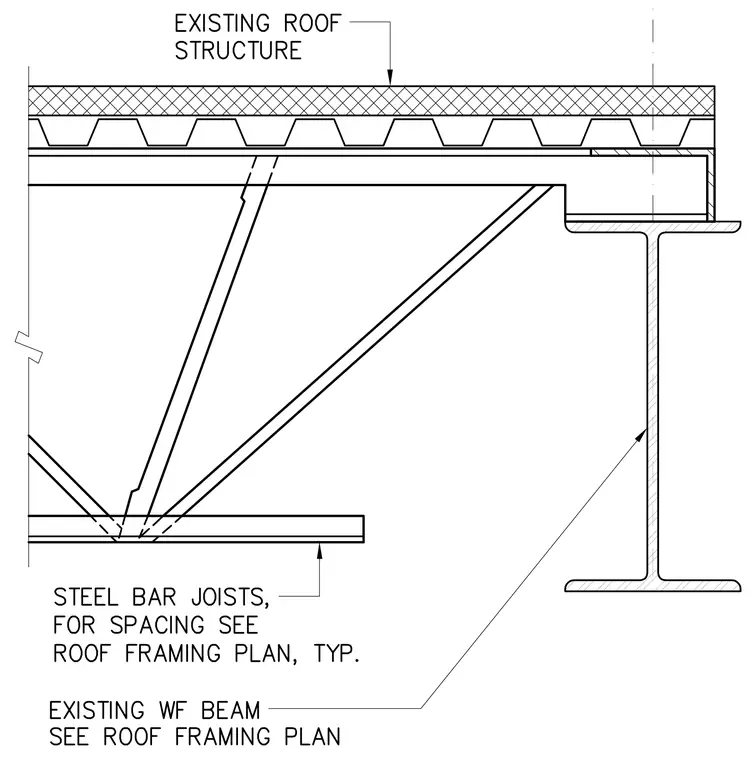

A steel bar joist bears on the top flange of an existing wide flange beam supporting an existing roof structure with metal decking. The joist spacing is specified per the roof framing plan, and the wide flange beam size is likewise referenced from the framing plan.
