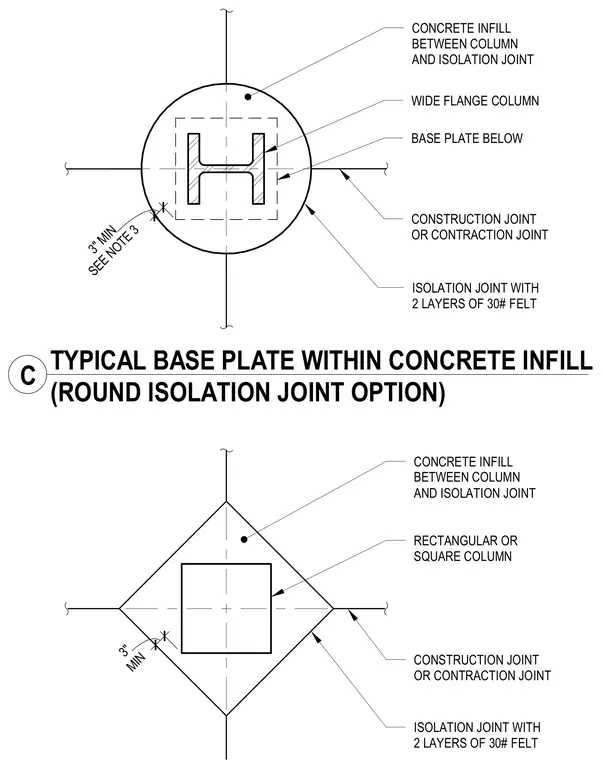

A wide flange or rectangular/square structural steel column sits with a base plate below, centered within a concrete infill. The concrete infill is bounded by a round or square isolation joint lined with two layers of 30# felt, providing a minimum three-inch clearance from the column profile. A construction joint or contraction joint surrounds the perimeter of the assembly.
RECTANGULAR OR SQUARE COLUMN CONSTRUCTION JOINT OR CONTRACTION JOINT ISOLATION JOINT WITH 2 LAYERS OF 30# FELT CONCRETE INFILL BETWEEN COLUMN AND ISOLATION JOINT MIN 3" WIDE FLANGE COLUMN CONSTRUCTION JOINT OR CONTRACTION JOINT ISOLATION JOINT WITH 2 LAYERS OF 30# FELT CONCRETE INFILL BETWEEN COLUMN AND ISOLATION JOINT BASE PLATE BELOW SEE NOTE 3 3" MIN C TYPICAL BASE PLATE WITHIN CONCRETE INFILL (ROUND ISOLATION JOINT OPTION)
