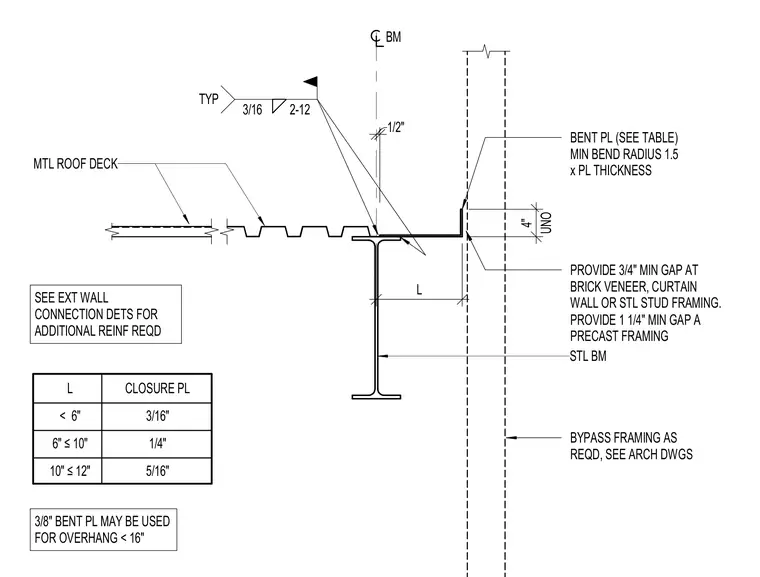

A bent steel plate acts as a closure plate spanning from a metal roof deck to a steel beam support, with plate thicknesses sized by overhang dimension according to the provided table. A three-sixteenths inch fillet weld with two-inch length spaced at twelve inches typical connects the assembly to the steel beam. A minimum bend radius of one point five times the plate thickness is maintained at the vertical leg of the bent plate. Clearances are specified at three-quarters inch minimum gap at brick veneer, curtain wall, or steel stud framing, and one and one-quarter inch minimum gap at precast framing with bypass framing as required per architectural drawings.
SEE EXT WALL CONNECTION DETS FOR ADDITIONAL REINF REQD L BENT PL (SEE TABLE) MIN BEND RADIUS 1.5 x PL THICKNESS < 6" 6" ≤10" 10" ≤12" CLOSURE PL 3/16" 1/4" 5/16" STL BM L 1/2" BM 3/8" BENT PL MAY BE USED FOR OVERHANG < 16" MTL ROOF DECK MTL ROOF DECK UNO 4" PROVIDE 3/4" MIN GAP AT BRICK VENEER, CURTAIN WALL OR STL STUD FRAMING. PROVIDE 1 1/4" MIN GAP A PRECAST FRAMING BYPASS FRAMING AS REQD, SEE ARCH DWGS 3/16 2-12 TYP
