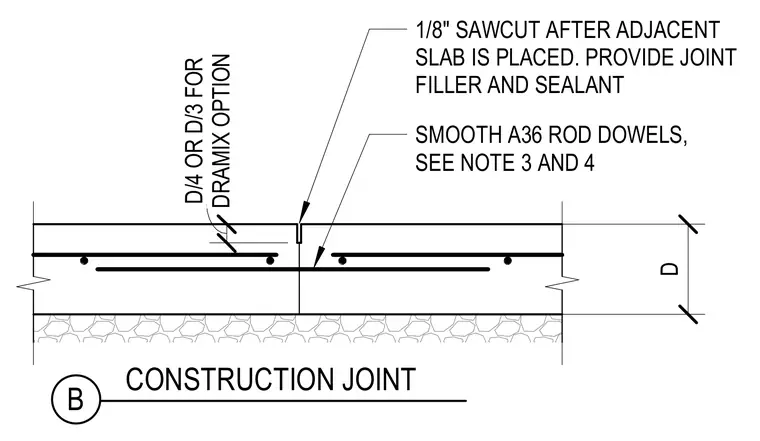

This concrete slab construction joint features smooth A36 steel rod dowels bridging across the joint interface. A one-eighth-inch sawcut is made after the adjacent slab is placed, complete with joint filler and sealant. An optional Dramix steel fiber reinforcement layout designated as D/4 or D/3 is included within the concrete. The slab rests upon a prepared sub-base.
B CONSTRUCTION JOINT SMOOTH A36 ROD DOWELS, SEE NOTE 3 AND 4 1/8" SAWCUT AFTER ADJACENT SLAB IS PLACED. PROVIDE JOINT FILLER AND SEALANT D DRAMIX OPTION D/4 OR D/3 FOR
