Structural · S-FBQ9M

End of Wall or Jamb Bars

Materials

Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

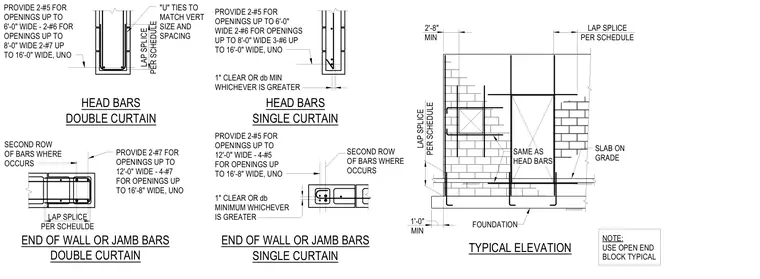

Concrete masonry unit wall reinforcement standards include end of wall, jamb, and head bar configurations for both single and double curtain layouts. Clear dimensions specify minimum lap splices, bar clearances, and specific reinforcing bar counts based on opening widths from 6 feet up to 16 feet 8 inches. Additional annotations detail the use of open end blocks, U-ties matching vertical size and spacing, and second rows of reinforcing bars above grade and foundation levels.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
