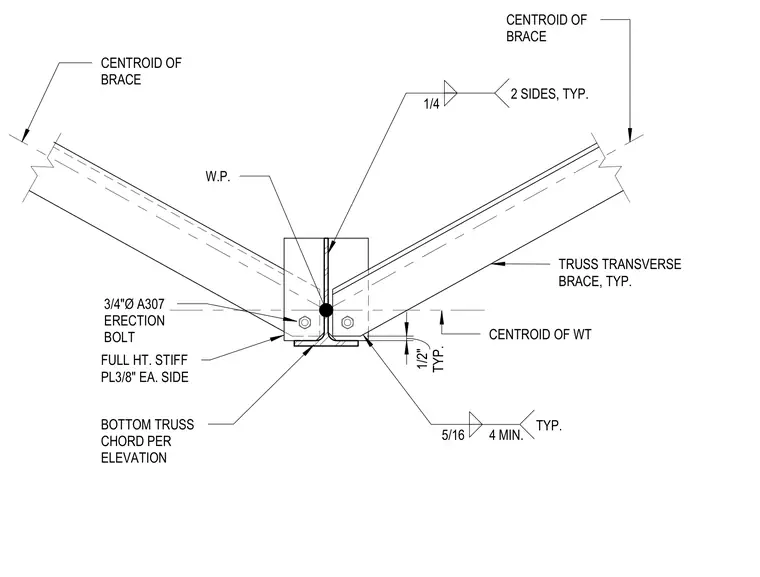

This connection details the attachment of truss transverse braces to the bottom chord using three-eighths-inch full height stiffener plates on each side. Three-quarter-inch diameter A307 erection bolts secure the components prior to final welding. Fillet welds of one-quarter-inch size are applied to two sides typically, while five-sixteenths-inch welds with a four-inch minimum length are used elsewhere typical. The intersecting member workpoint and brace centroids are explicitly aligned according to the structural design.
BOTTOM TRUSS CHORD PER ELEVATION FULL HT. STIFF PL3/8" EA. SIDE TRUSS TRANSVERSE BRACE, TYP. 1/4 2 SIDES, TYP. 5/16 4 TYP. MIN. CENTROID OF WT CENTROID OF BRACE CENTROID OF BRACE W.P. TYP. 1/2" 3/4"Ø A307 ERECTION BOLT
